AFC2000
Select an image to enlarge. Product media, dimensions and application visuals appear here when available.
Why choose AR2000
What it does for your air system.
Pressure knob
A tactile adjustment knob helps operators tune output pressure quickly and repeatably.

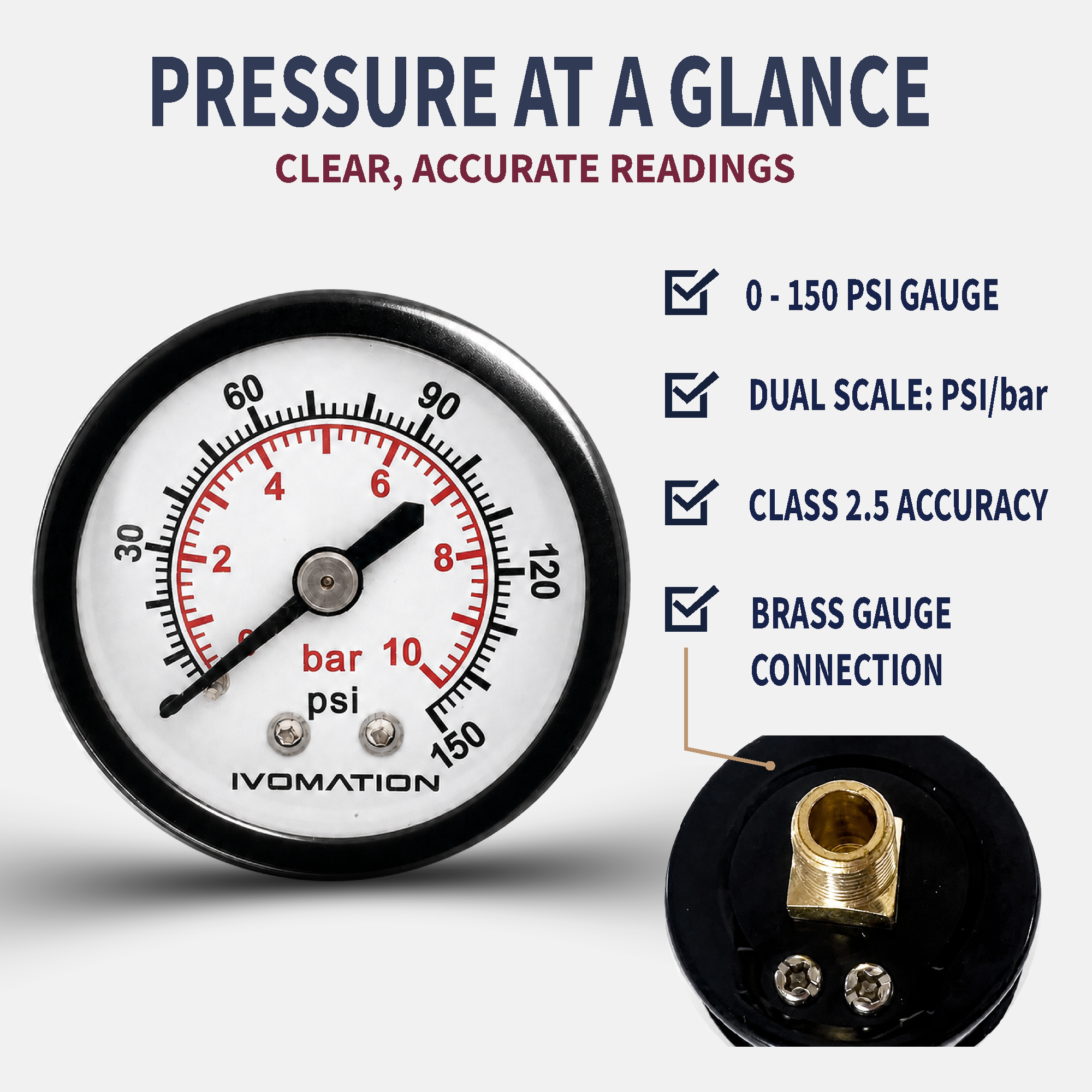

Gauge port
The gauge position makes pressure status clear for setup, inspection, and maintenance.
Stable diaphragm
Internal control geometry supports stable pressure delivery for pneumatic tools and machines.
Durable design
A strong housing and compact footprint suit repeated use in industrial environments.

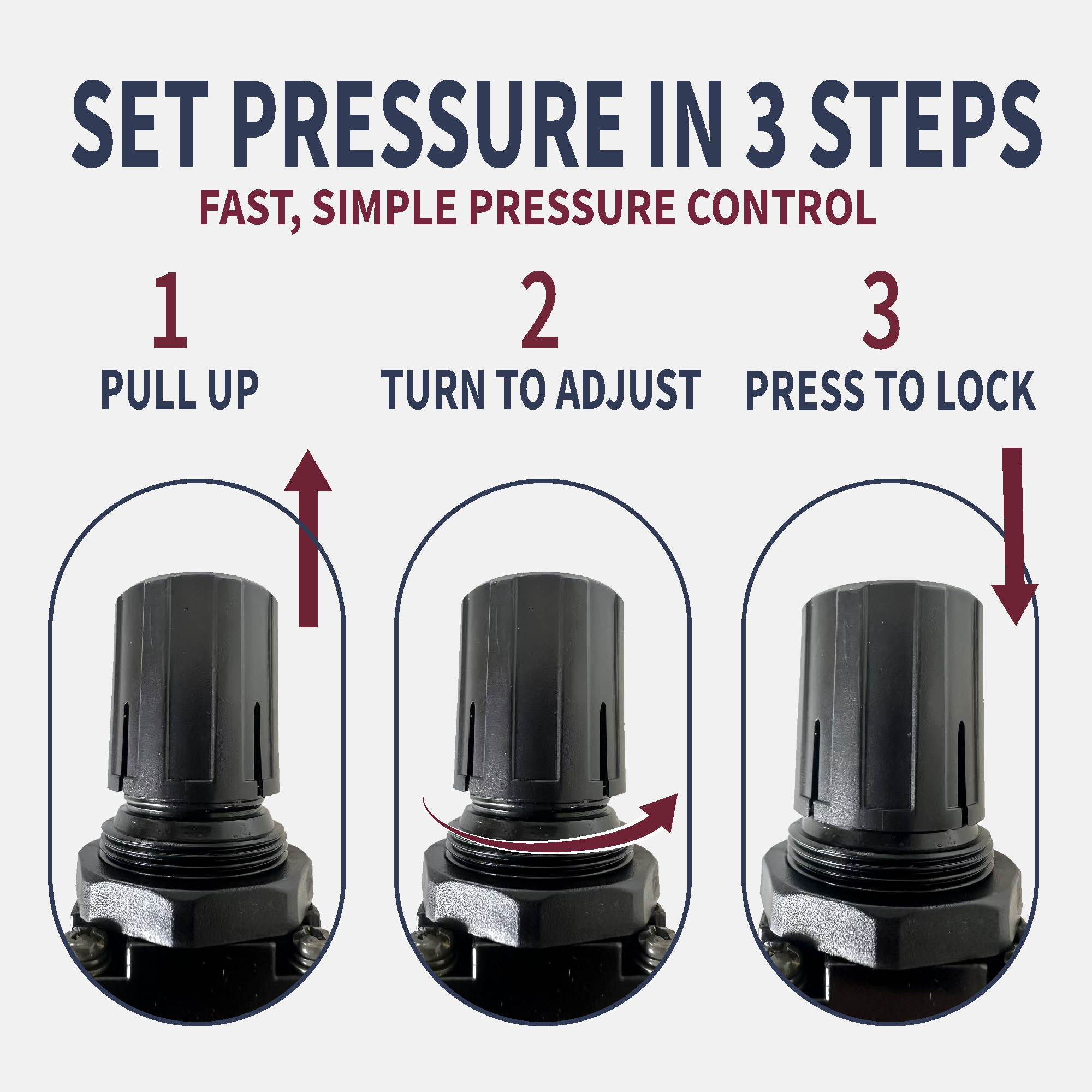

Adjustment knob
Precise pressure control in a compact regulator body.
Applications
Made for practical compressed-air work.
Air compressors
Confirm pressure, airflow, port size and air-quality requirements before installation.
Assembly equipment
Confirm pressure, airflow, port size and air-quality requirements before installation.
Pneumatic tools
Confirm pressure, airflow, port size and air-quality requirements before installation.
Machine air lines
Confirm pressure, airflow, port size and air-quality requirements before installation.
Technical details
Specifications for confident selection.
Controls compressed-air pressure with a compact body for repeatable equipment performance.
Stable pressure adjustment
G/BSP thread options
Workshop-ready operating range
Durable and lightweight
Selection
- Model
- AR2000
- Series
- AR Series
- Port size (G/BSP)
- 1/4"
- Max. flow rate
- 1750 L/min
Air preparation
- Regulating range
- 0.5-8.5 bar
- Gauge port
- Available by configuration
Operating details
- Medium
- Compressed air
- Max. supply pressure
- 15 bar
- Max. operation pressure
- 9.9 bar
- Ambient temperature
- 5-60°C
- Body material
- Aluminum die-casting forming
- Bowl material
- PC
- Bracket model
- B220
- Construction
- Relieving type
Different thread types and OEM/ODM configurations are available on request.
Why IVOMATION
Industrial detail with ecommerce clarity.
FAQ
Before you order.
It is intended for compressed-air systems. Confirm operating pressure, required flow and thread specification before ordering.
Match the thread standard and port size to your air line, then verify that the selected size supports the required flow rate.
Yes. Send the model, configuration, quantity, application and destination so the team can review the requirement.

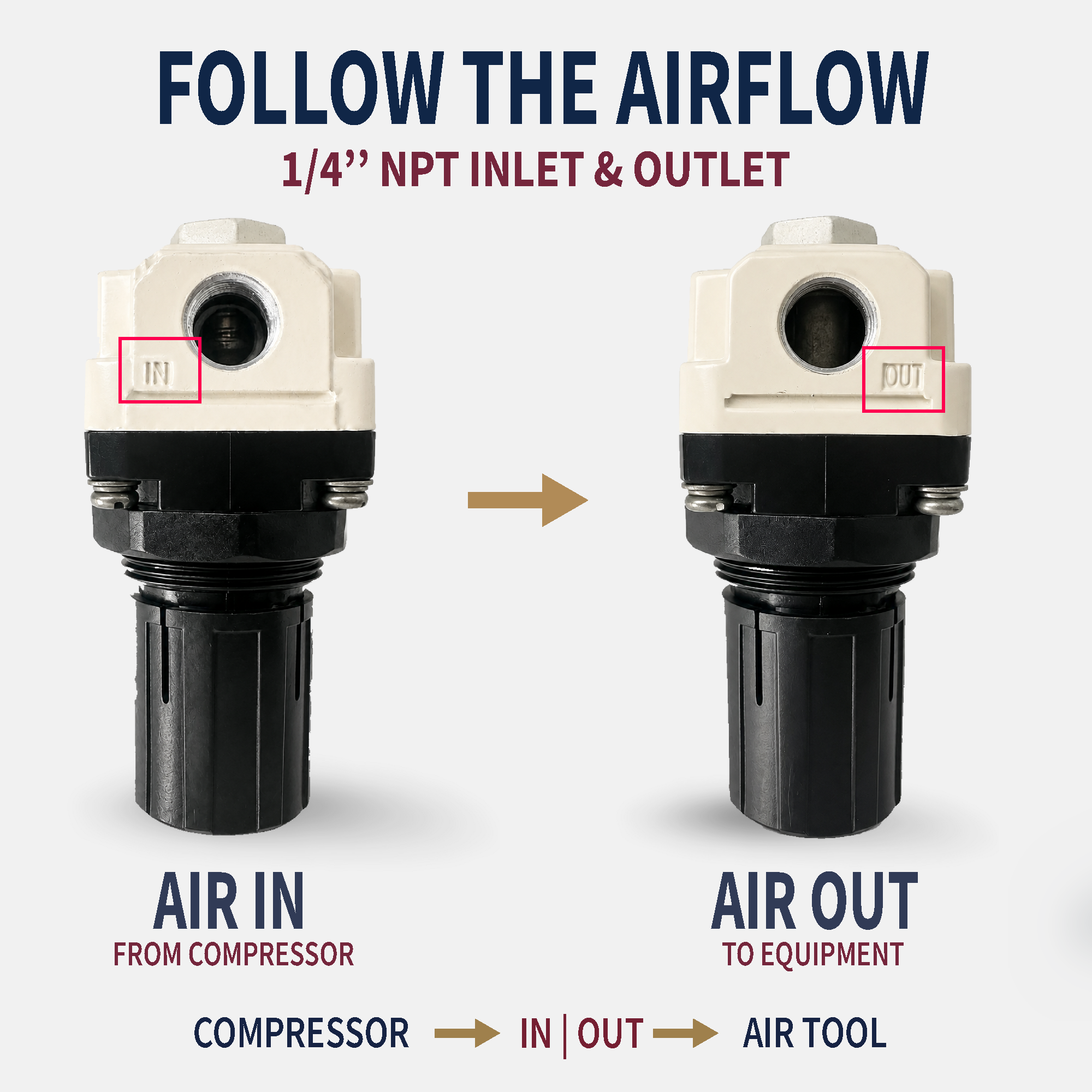

Check airflow direction, pressure limits, drainage access, installation orientation and the maintenance space around the product.
