AFC2000

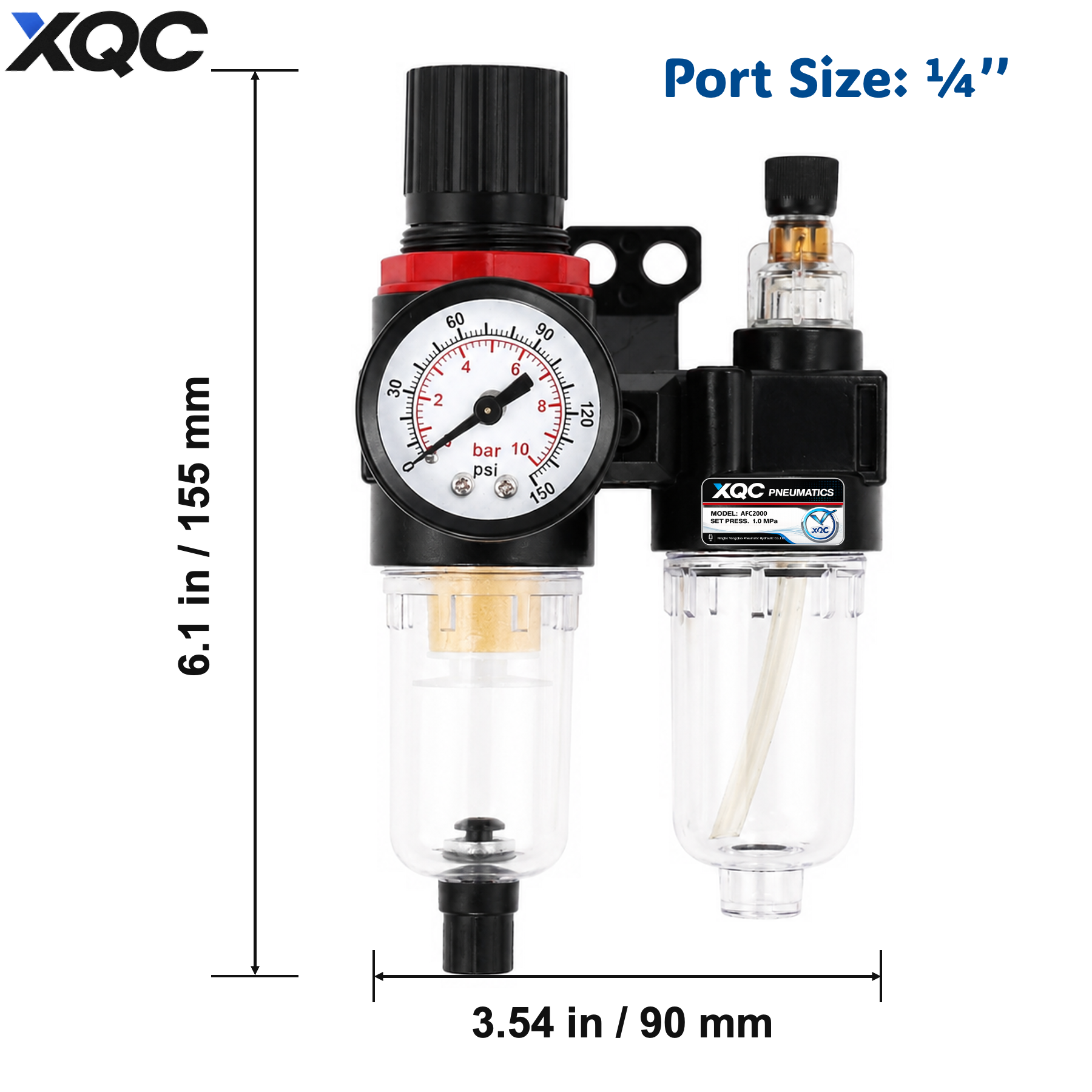

Select an image to enlarge. Product media, dimensions and application visuals appear here when available.
Product & packaging
See it up close before you order.
Watch the product overview and preview how your order is packaged before it arrives.
Why choose AFC2000
What it does for your air system.
Transparent bowl
A clear bowl makes condensate and contamination easy to inspect during routine maintenance.
Durable design
A compact body and protected bowl geometry are designed for workshop and machine-side installation.
Port connection
Threaded inlet and outlet ports keep installation simple across common pneumatic layouts.
Particle filtration
Compact filtration for clean, stable compressed air.
Visible bowl
Compact filtration for clean, stable compressed air.
Applications
Made for practical compressed-air work.
Air compressors
Confirm pressure, airflow, port size and air-quality requirements before installation.
Spray equipment
Confirm pressure, airflow, port size and air-quality requirements before installation.
Pneumatic tools
Confirm pressure, airflow, port size and air-quality requirements before installation.
Workshop air lines
Confirm pressure, airflow, port size and air-quality requirements before installation.
Technical details
Specifications for confident selection.
Effectively filters impurities in compressed air to support stable pneumatic system operation.
Compressed-air supply
G/BSP thread options
Workshop-ready operating range
Durable and lightweight
Selection
- Model
- AFC2000
- Series
- AF Series
- Filter element
- Brass
- Port size
- 1/4"
- Filtration
- 5 µm
- Max. flow rate
- 1750 L/min
Air preparation
- Filtration
- 5 µm
- Water bowl capacity
- 80 cm3
Operating details
- Medium
- Compressed air
- Max. supply pressure
- 15 bar
- Max. operation pressure
- 9.9 bar
- Ambient temperature
- 5-60°C
- Body material
- Aluminum die-casting forming
- Bowl material
- PC
- Bracket model
- B220
- Construction
- Modular body
Different thread types and OEM/ODM configurations are available on request.
Why IVOMATION
Industrial detail with ecommerce clarity.
FAQ
Before you order.
It is intended for compressed-air systems. Confirm operating pressure, required flow and thread specification before ordering.
Match the thread standard and port size to your air line, then verify that the selected size supports the required flow rate.
Yes. Send the model, configuration, quantity, application and destination so the team can review the requirement.
Check airflow direction, pressure limits, drainage access, installation orientation and the maintenance space around the product.
